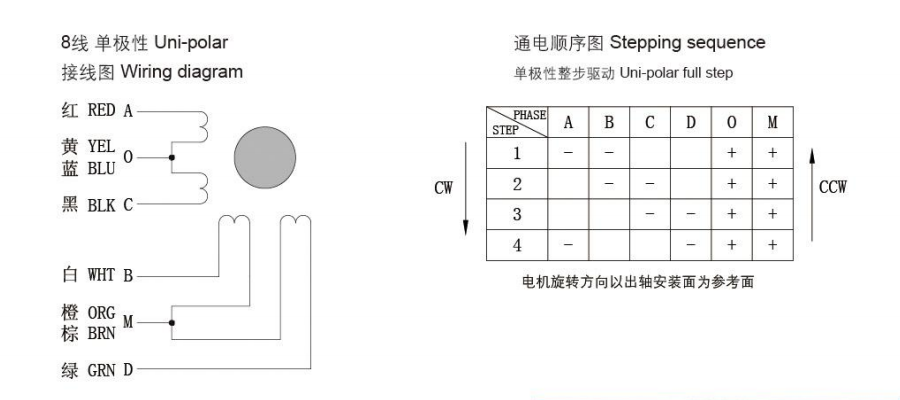

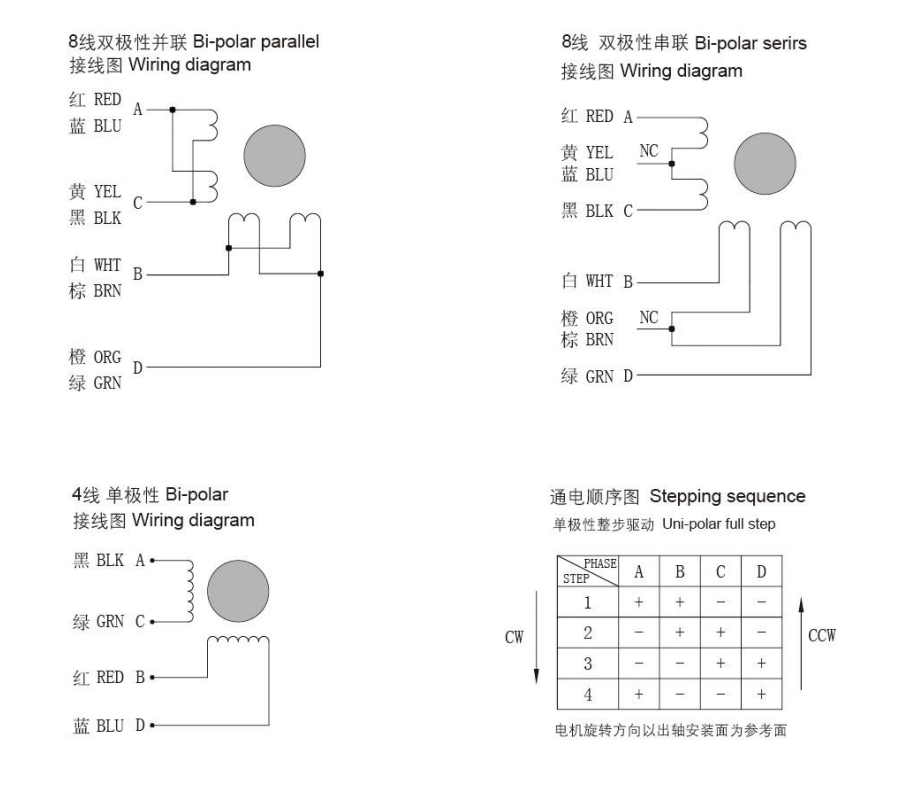

- 接线图

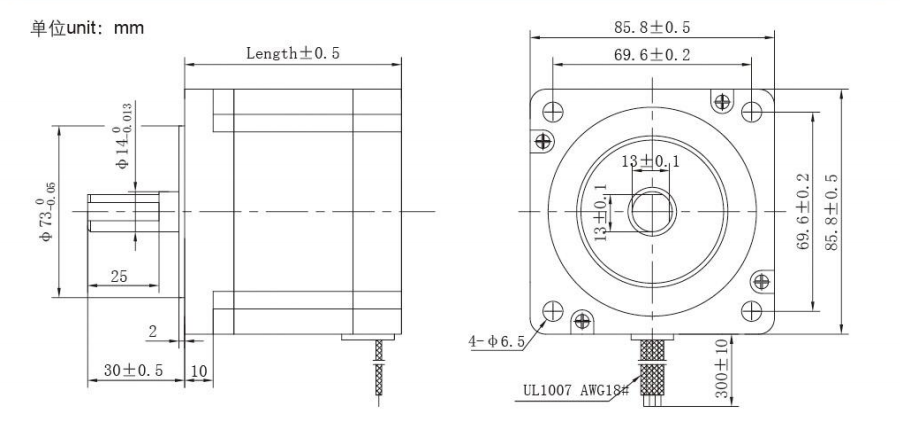

- 规格参数

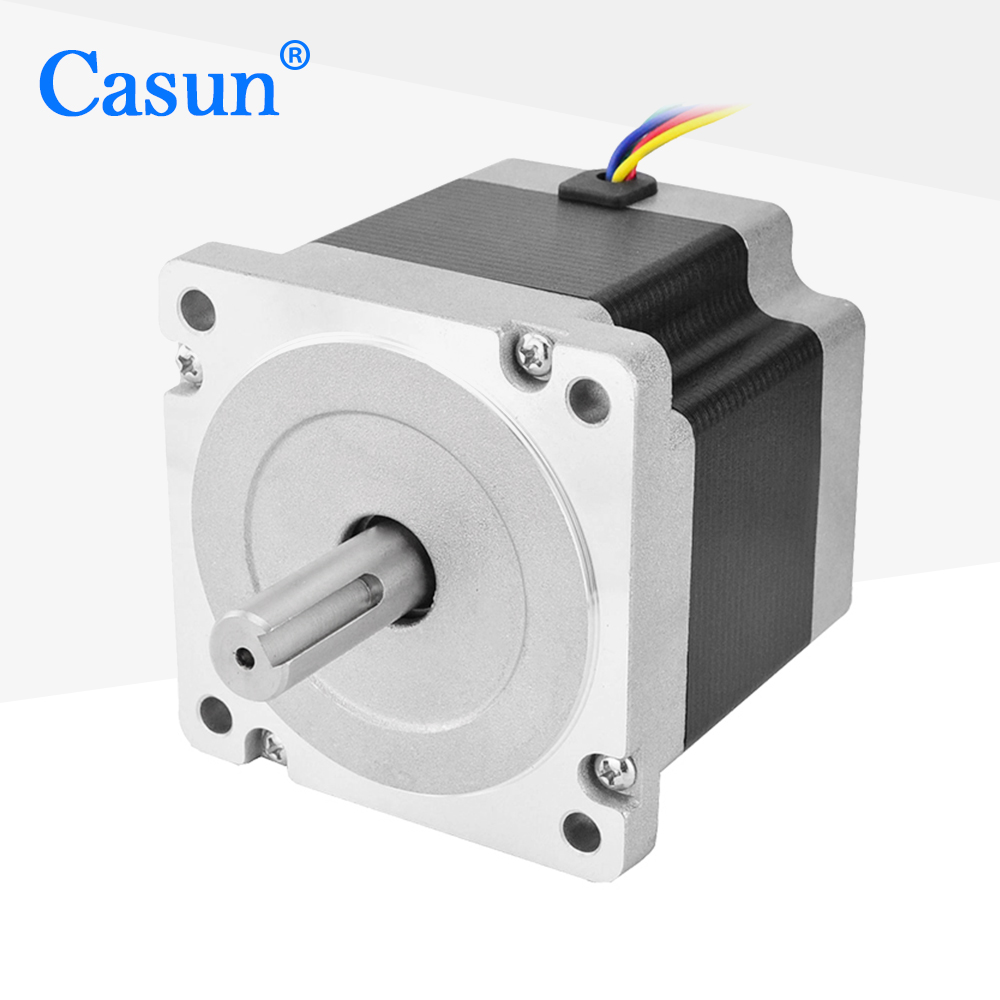

86mm中大型混合式步进电机、两相直流、步距角: 1.8°、NEMA34、工艺精湛，高精度、大力矩、低噪音、运行平滑，高效率，加速快符合RoHS/CE/ISO认证,为公司畅销产品系列！
| Model | Holding Torque | Step Angle | Length | Shaft | Rated Current |
| 86SHD4003-32 | 4.0N.m | 1.8° | 69mm | Key Shaft-32mm | 4.0A |
| 86SHD4101-32 | 4.5N.m | 1.8° | 76mm | Key Shaft-32mm | 4.0A |
| 86SHD4201-37 | 5.6N.m | 1.8° | 98mm | Key Shaft-37mm | 4.0A |
| 86SHD4314-37 | 6.8N.m | 1.8° | 112mm | Key Shaft-37mm | 5.0A |
| 86SHD4404-37 | 8.0N.m | 1.8° | 127mm | Key Shaft-37mm | 5.0A |
| 86SHD4505-37 | 12.0N.m | 1.8° | 150mm | Key Shaft-37mm | 5.5A |
