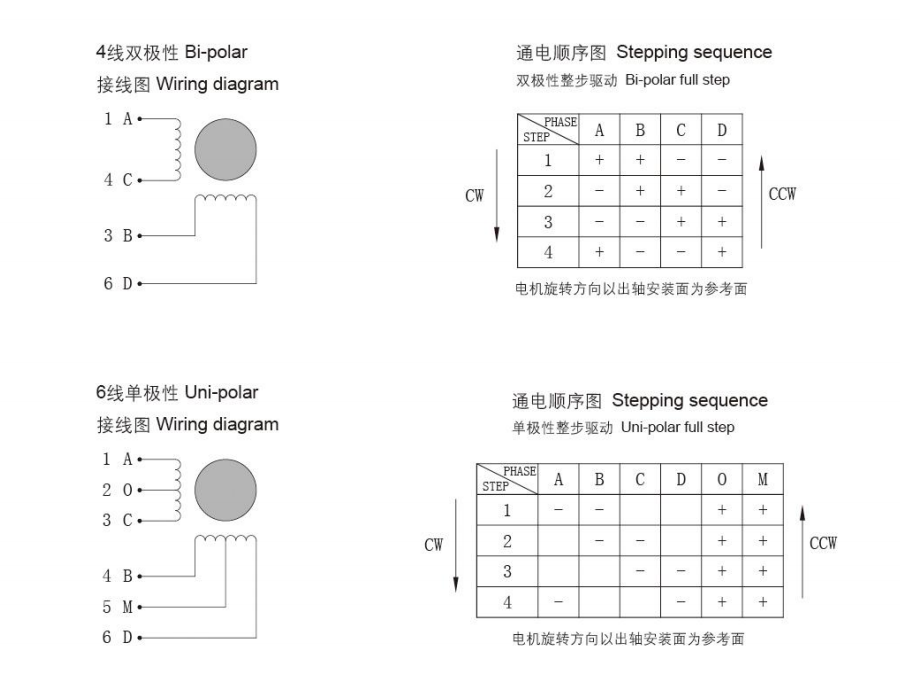

- 接线图
- 规格参数
此系列为两相直流(57mm)NEMA 23步进电机，分为单出轴和双出轴两种方式，符合CE,RoHS,ISO认证。
中小型步进电机、步距角为1.8°，角度误差±0.09°，
绝缘耐压500V AC/分钟，绝缘电阻100MΩ，马达表面可承受100℃高温。
| Model | Holding Torque | Step Angle | Length | Shaft | Rated Current |
| 17HS08-1004S | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 17HS13-0404S1 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 17HS4401S | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 17HS19-2004S1 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 17HS24-2104S | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
