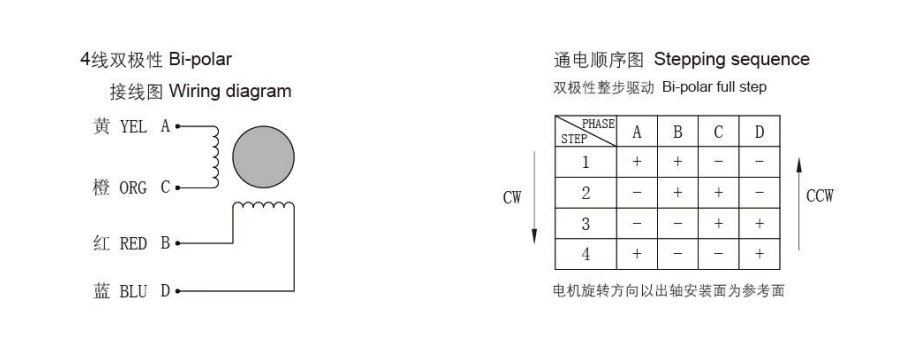

- 接线图
- 规格参数

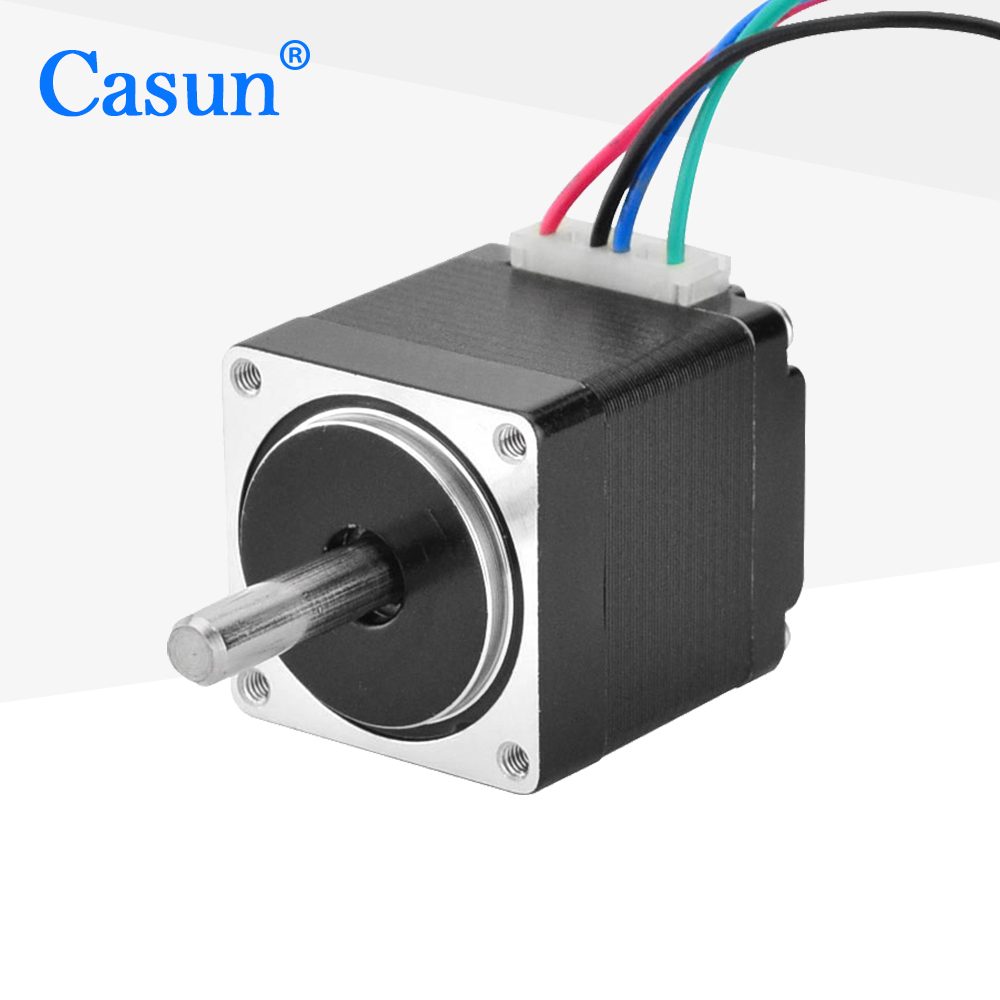

法兰尺寸为28mm的两相直流步进电机，步距角为1.8°（全步距）分为单出轴和双出轴D两种类型，产品小体积，大力矩，转速高，温升低，符合RoHS认证标准，
更多28步进电机敬请咨询！
| Model | Holding Torque | Step Angle | Length | Shaft | Rated Current |
| 28SHD4202-20 | 60mN.m | 1.8° | 32mm | Round Shaft | 0.67A |
| 28SHD4303-20 | 80mN.m | 1.8° | 40.5mm | Round Shaft | 0.67A |
| 28SHD4401-20 | 95mN.m | 1.8° | 44.5mm | Round Shaft | 0.67A |
| 28SHD4501-20 | 120mN.m | 1.8° | 51.5mm | Round Shaft | 0.67A |
